Architectural Wedge Wire

Architectural Wedge Wire Panels & Cylinders for
Various Building Decoration Projects
Brand:Hangshun Wire Mesh
Place of Origin:China

Architectural wedge wire is made of stainless steel wire by wrapping “V” shaped profile wire around longitudinal support rods. All the wires and rods are resistance welded at each contact point to form a wedge wire cylinder and then make it into a sieve panel after cleaning, cooling, cutting, flattening and trimming.

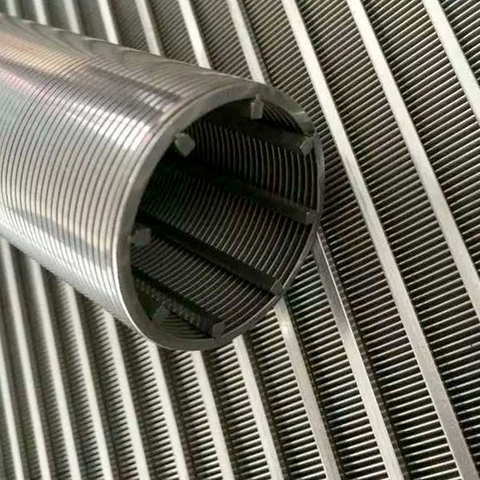

Architectural wedge wires are divided into wedge wire cylinders and wedge wire panels.

Architectural wedge wire is functional and decorative for both residential and commercial buildings. It not only has impressive appearance, fashionable sense of design, simple & elegant, full of modern sense, but also offers acoustic and ventilation solutions.

Profile wires, support rods, width, length and depth can be customized upon request. Besides, straight line, arc and corner designs are also available.


● Fashionable sense of design, simple & elegant, full of modern sense.

● The linear, smooth surface design makes it decorative and safe for crowded streets and the disabled.

● High load bearing capacity when used as flooring.

● Less likely to clog when used as industrial flooring.

● Virtually maintenance-free when used for architectural decoration.

● Long service life.

Technical Data

MaterialsSS304 or SS316 are the most popular, SS301 is an economical choice
Load ratingspedestrian, automotive, bicycle, light commercial, heavy commercial
PartsGrating panels and walkways
Profile wire2 × 3 mm, 2.5 × 3.5 mm, 3 × 4.2 mm, 3 × 5 mm
Slot2.5 mm, 3 mm, 3.5 mm as required
Support rod3 × 6.5 mm
Pitch20 mm, 25 mm, 30 mm or customized
Frame size3 × 15 mm, 3 × 18 mm, 3 × 20 mm, 5 × 18 mm, 5 × 20 mm or customized
Width50, 65, 70, 89, 95, 100, 150, 200, 350 mm or customized
Length100, 200, 500, 1000 mm, etc
Finishpolished/mirror finish, PVD finish

Architectural wedge wire is used as commercial building facade

Facade & Cladding

It is widely used in interior and exterior walls as cladding and facades to make the them look more attractive and high-end. It is very popular among hotels, offices and residences.

In addition, it is both decorative and functional. For example, it helps to reduce glare from the sun, allow the free passage of light and air, and mitigate the impact of wind and storms.

Architectural wedge wire is used for ceiling decoration


It can be used as ceiling panels in both residential and commercial sites, such as shopping malls, office buildings, waiting areas, hotels, airports, private homes, etc.

It can conceal utility cables, ductwork and air conditioning equipment. Additionally, it allows the free passage of air. What's more, high grade stainless steel material has excellent corrosion resistance and fireproof performance to reduce repair and replacement costs.

Architectural wedge wire is used as brewery floor grating


It can be used as flooring gratings, so it is also known as wedge wire gratings. It can remove water and wastewater and prevent slipping. It is widely used in residential, commercial and industrial sites, including pedestrian streets, fountains, kitchens, bathrooms and poolsides.

Moreover, it is easy to install and replace. Flat surface provide a safe way for canes, wheelchairs, crutches and other walking aids. Besides, large open area also increases its drainage performance.

Architectural wedge wire is used for park lamp post decoration

Lamp Cover or Lamp Post

It can act as lamp cover or lamp post. The V-shaped profile wires and support rods are continuously resistance welded to ensure the stable structure and high strength. It is widely used in hotels, malls, parks, high grade residences and business facilities.

It has bright luster, very practical and beautiful when used as light covers. Besides, it is easy to install and requires little maintenance costs.

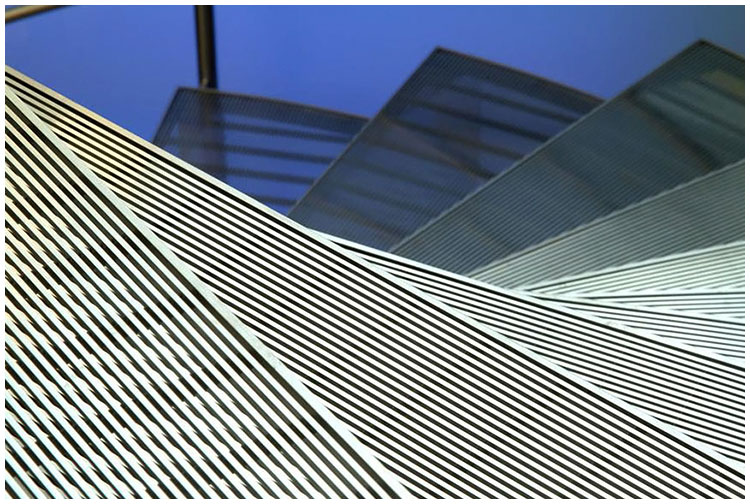

Architectural wedge wire is used as stair treads

Stair Treads

It can function as stair treads. It has a smooth, safe surface, which makes it an ideal choice for all interior and exterior conditions, such as snow, mud, ice and grease. It brings safety, cleanliness, durability and aesthetics to office buildings, hotels, high-grade shopping malls, industrial projects and even residences.

It features high load capacity, high strength, durability and long lifespan. Stainless steel material make it work stably even in harsh environments.

Architectural wedge wire is used as staircase handrails

Balustrade & Staircase

Balustrades and staircases are important safe facilities in both private and public places, including parks, office buildings, hotels, shopping malls, etc.

Made of durable, high strength stainless steel materials, it helps to provide high strength and a long lifespan for site safety. Besides, it has good aesthetic effect and functional performance. So, it is widely accepted by an increasing number of balustrades and staircases projects.
